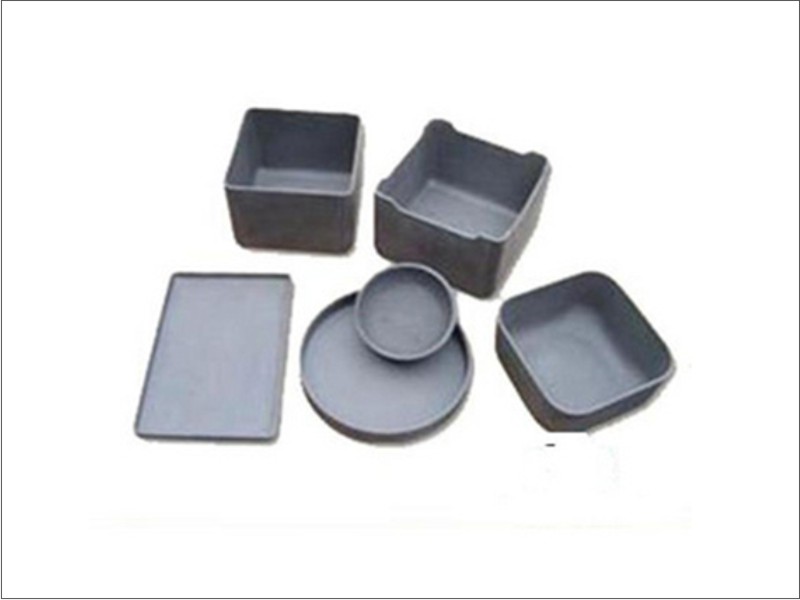

Reaction SiC Crucible

Home/Refractory Materials/Reaction SiC Crucible

Reaction SiC Crucible

Out of stock

[fusion_builder_container hundred_percent="no" hundred_percent_height="no" hundred_percent_height_scroll="no" hundred_percent_height_center_content="yes" equal_height_columns="no" menu_anchor="" hide_on_mobile="small-visibility,medium-visibility,large-visibility" class="" id="" background_color="" background_image="" background_position="center center" background_repeat="no-repeat" fade="no" background_parallax="none" enable_mobile="no" parallax_speed="0.3" video_mp4="" video_webm="" video_ogv="" video_url="" video_aspect_ratio="16:9" video_loop="yes" video_mute="yes" video_preview_image="" border_size="" border_color="" border_style="solid" margin_top="" margin_bottom="" padding_top="" padding_right="" padding_bottom="" padding_left=""][fusion_builder_row][fusion_builder_column type="1_1" layout="1_1" spacing="" center_content="no" link="" target="_self" min_height="" hide_on_mobile="small-visibility,medium-visibility,large-visibility" class="" id="" background_color="" background_image="" background_position="left top" background_repeat="no-repeat" hover_type="none" border_size="0" border_color="" border_style="solid" border_position="all" padding_top="" padding_right="" padding_bottom="" padding_left="" dimension_margin="" animation_type="" animation_direction="left" animation_speed="0.3" animation_offset="" last="no"][fusion_tabs design="classic" layout="horizontal" justified="yes" backgroundcolor="" inactivecolor="" bordercolor="" icon="" icon_position="" icon_size="" hide_on_mobile="small-visibility,medium-visibility,large-visibility" class="" id=""][fusion_tab title="Description" icon=""] Rbsic (sisic) crucibles and saggers have superior characteristic, such as wear resistance, corrosion resistance, high temperature tolerance, oxidation resistance, perfect efficiency of sealing, long time service life. The series of products are widely used in the fields of chemical industry, oil industy, environmental protection, etc for melting or sintering products. [/fusion_tab][fusion_tab title="Application" icon=""]
  • sanitary ware
  • glass panel industries,
  • glost firing of tableware.
  • ceramic tiles
  • porcelain tiles
[/fusion_tab][fusion_tab title="Features" icon=""]
  • RBSIC(SiSiC)'s special feature is its ability to maintain high strength from room temperature up to 1,350°C. Also it has very high oxidation resistance, chemical resistance and wear resistance. Used as beam, roller, radiant tube burner and burner nozzle etc.We have cross beam, solid beam and special shape beam. Reaction-bonded silicon carbide beam is applied to the bearing frame of tunnel furnace, shuttle furnace and industrial furnace.  reaction-bonded silicon carbide beam is characterized by big high-temperature resistance, no bending deformation and long service life, and is an ideal furnace applied to sanitary ceramics and electro ceramics furnaces. reaction-bonded silicon carbide, with good thermal conductivity, can save energy consumption significantly.
[/fusion_tab][fusion_tab title="Specification" icon=""]
Item Unit Index
Application temperature 1380
Density g/cm3 ≥ 3.02
Open porosity % ≤ 0.1
Bending strength Mpa 250 (20℃)
Mpa 280 (1200℃)
Modulus of elasticity Gpa 330 (20℃)
Gpa 300 (1200℃)
Thermal conductivity W/m.k 45 (1200℃)
Coefficient of thermal expansion K-1×10-6 4.5
Rigidity 13
Acid and alkali resistance Excellent
  [/fusion_tab][fusion_tab title="Advantage" icon=""]
  • We has two factories of 50000 square meters and totally 300 employees to promise the Silicon Carbide and Silicon Nitride Ceramics In Stock best quality control;2. According customers’ demand to design special size;3. Our motivation is --- customers’ satisfaction smile;4. Our believing is --- pay attention to every detail;5. Our wish is ----perfect co-operation.
[/fusion_tab][fusion_tab title="Quality control" icon=""] 1. Checking raw material before producing. 2. Checking one by one before the assebling 3. Checking one by one during the production 4. Have the random inspection before the delivery. [/fusion_tab][fusion_tab title="Production process" icon=""] A:)Raw materials B:) deironing C:)Mould D:)Pressing E:)drying F:)Sintering G:)Coating H:)Checking I:)Assambling J:)Checking again K:)Packing [/fusion_tab][/fusion_tabs][/fusion_builder_column][/fusion_builder_row][/fusion_builder_container]

Face Impex tiles are estimated to become some of the most easily reached and most durable ceramic material that makes them economical and easily installable. They come with a thin profile side view as slim as 20mm. Face impex have a big range in small format ceramic water proof tiles with different size and color.

See more ideas about Reaction SiC Crucible with many different color and looks
